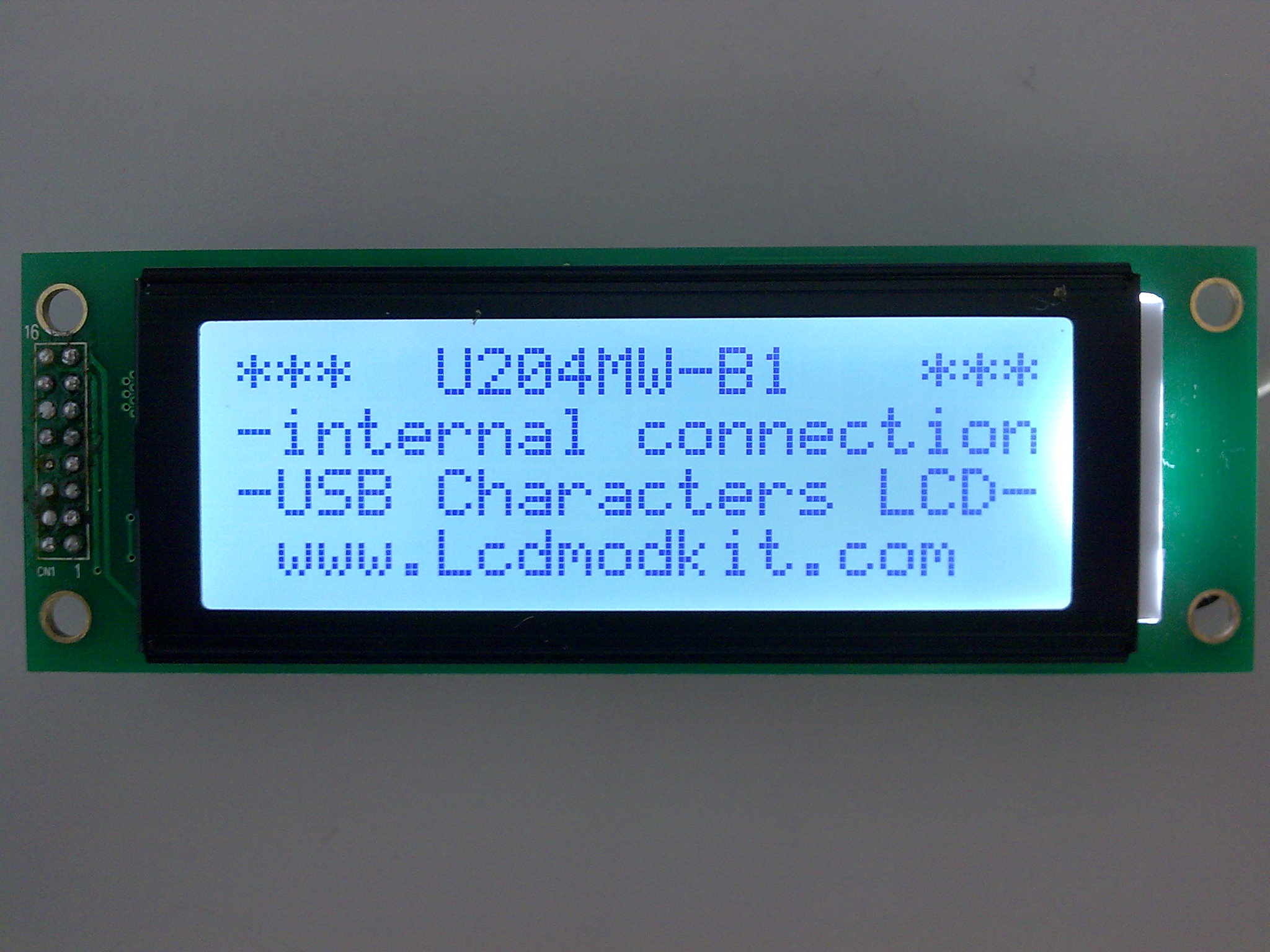

U204MW-B1
USB 20x4 Characters LCD (blue characters white backlight)


Product
U204MW-B1 Price: HK$252.00

(1) Brand
(2) Pixel Color
(3) Background Color
(4) Polarizer Type
(5) Backlight
(6) Data Transfer
(7) Resolution
(8) LCD Dimensions
(9) USB backplane
(10) USB connection
(11) Work with
(12) DLL for LCD Smartie
(13) DLL for programming
(14) Software
(15) Driver
(16) Internal USB cable
: Lcdmod Kit
: Blue
: White
: +ve Transflective
: White Backlight
: USB 1.1 compliant
: 20 Characters x 4 Lines
: 116x40x13 mm
: 38x38x5.5mm / 3mm gap from LCD backplane
: mini-B / internal USB connector
: Lcd Smartie, lcd4linux and LCDProc
: Free(Work with Win 98 / XP, Vista, Windows 7 32&64 bit)
: Free(Work with Win 98 / XP, Vista, Windows 7 32&64 bit)
: Free Lcd Smartie (Work with Win 98 / XP, Vista, Windows 7 32&64 bit)
: Free (Work with Win 98 / XP, Vista, Windows 7 32&64 bit)
: Included (600mm long)

Ship by registered airmail
Installation Guide : Windows 7 64bit Installation Guide U204MB-B1.pdf
Manual and driver & program :
http://www.lcdmodkit.com/specification/U204MB-B1.zip
U204MW-B1BP204-B
